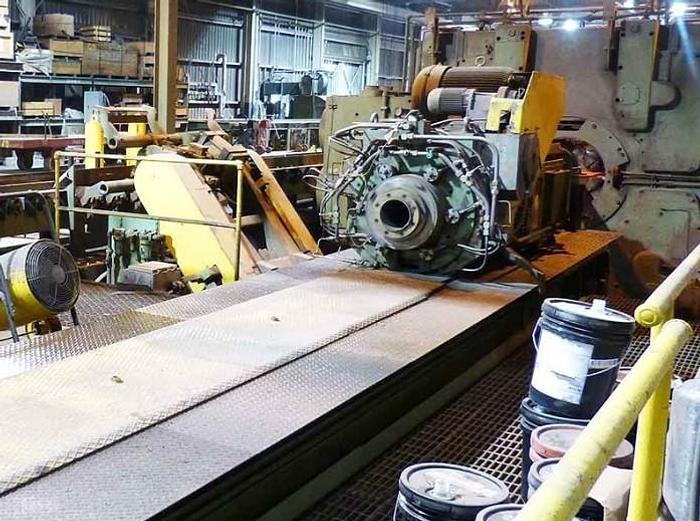

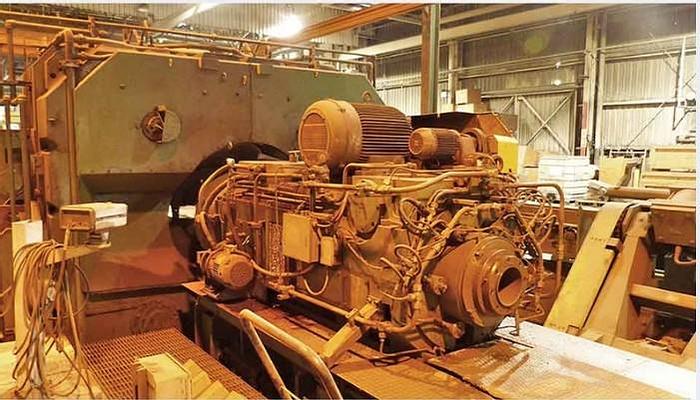

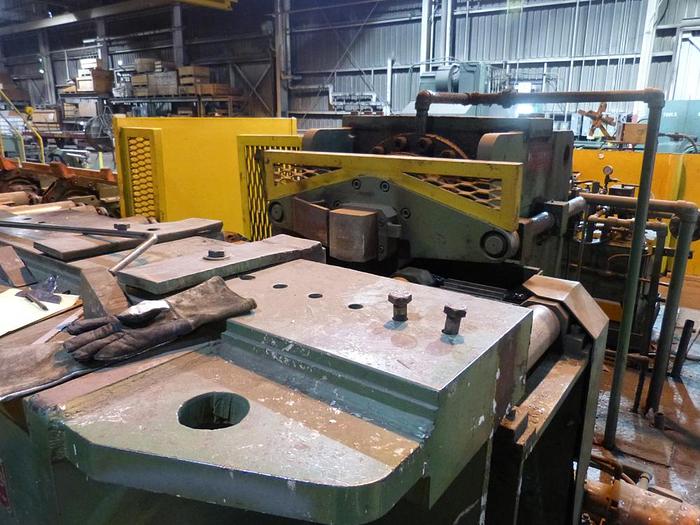

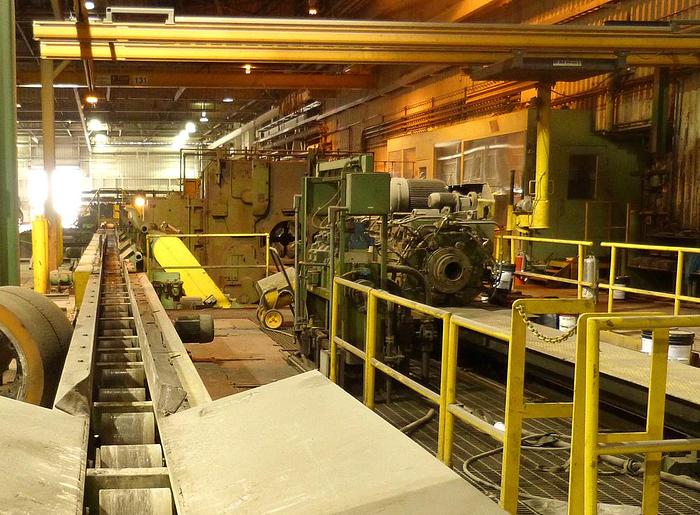

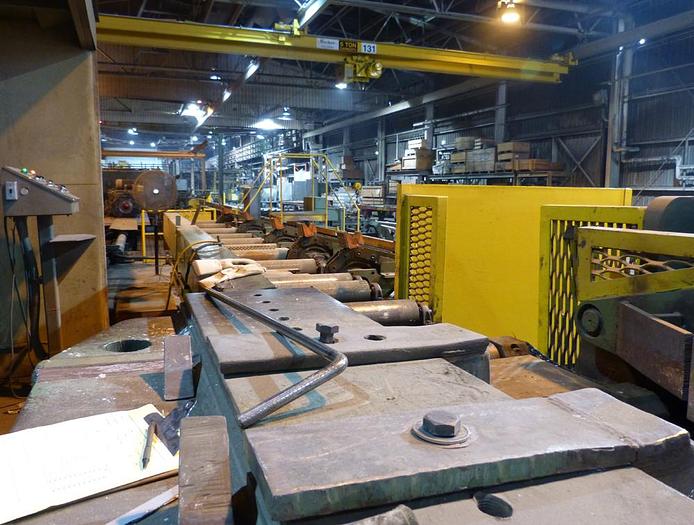

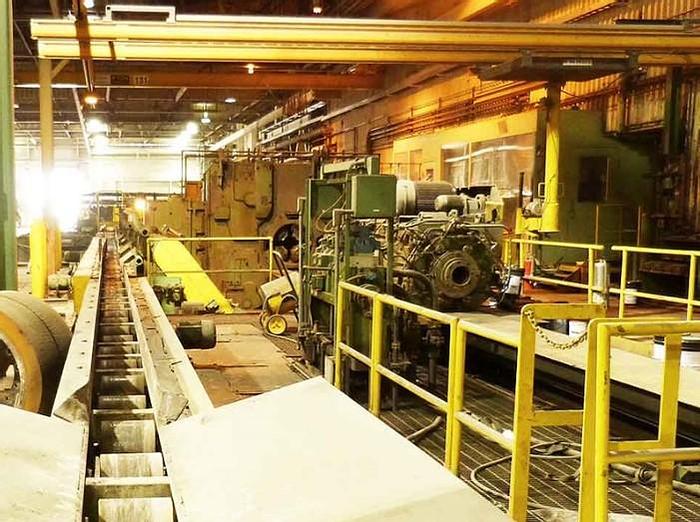

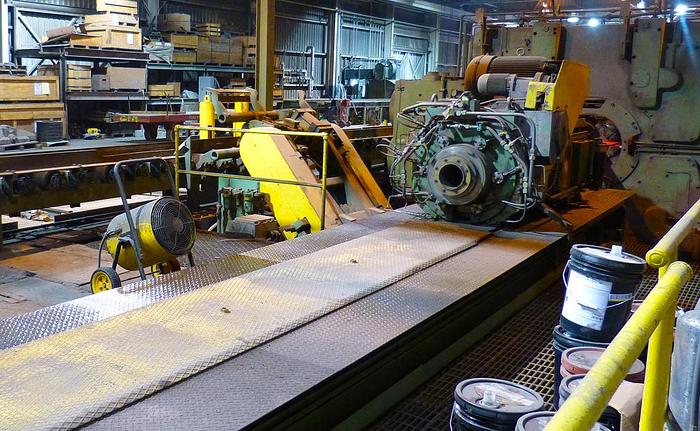

Radial Forging Line GFM SXL 25

Sold

Specifications

ManufacturerGFM
ModelSXL 25
Year1970
ConditionUsed
Stock NumberMA1650
Item conditionExcellent working condition

Description

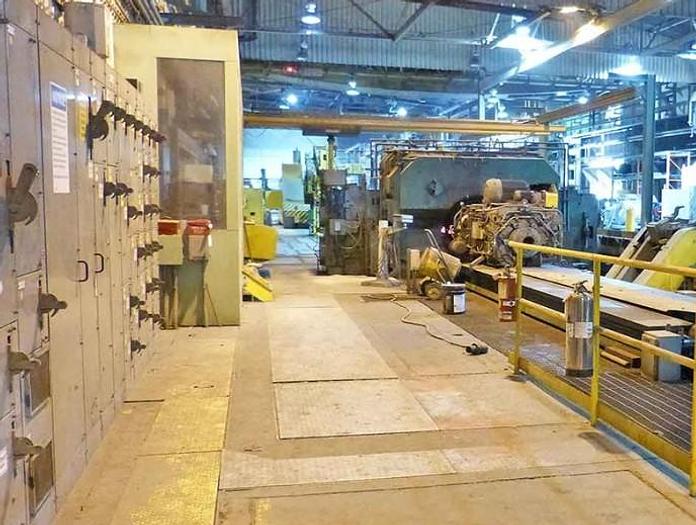

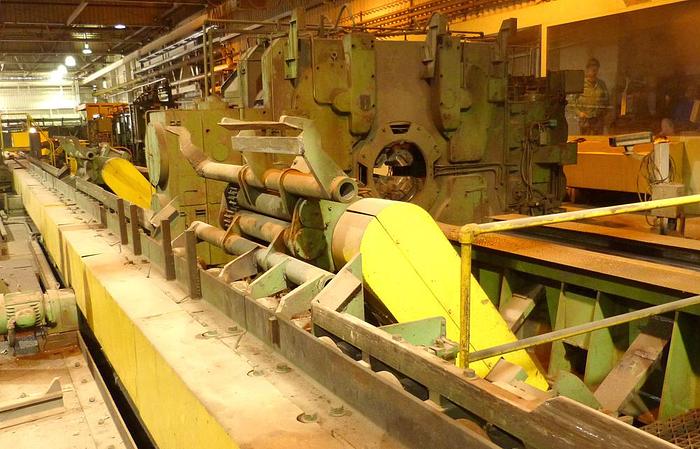

4-Die Horizontal Long Radial Forging Machine Line

Dia : 250 mm,

Dies/Rolls : Four

Force of each hammer : 340 tons

Motor : 322 kW,

Total Forge Tonnage: 1,360 tonnes

Max Forging bar diameter : 250 mm,

Max Squares with rounded corners: 220 mm,

Max width of forged rectangles : 180 mm,

Max height of forged rectangles : 30 mm,

Max approx side ratio of forged rectangles :1:6

Max workpiece length : 5,000 mm,

Max workpiece weight :1,200 kgs,

Max power of the forging motors ; 320 kW,

Total installed power : 580 kW.


Complete with:

• Mechanical Group consisting of the following:

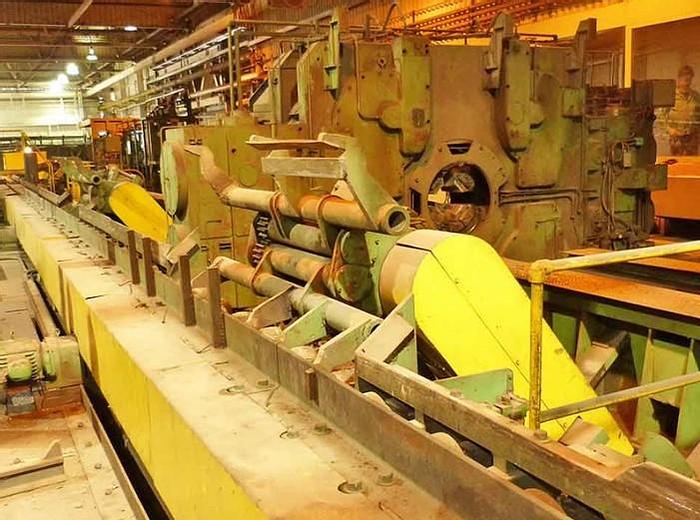

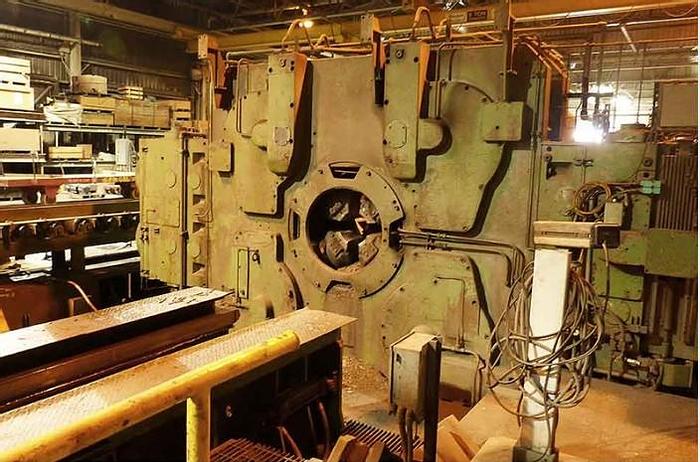

  (4) Forging boxes

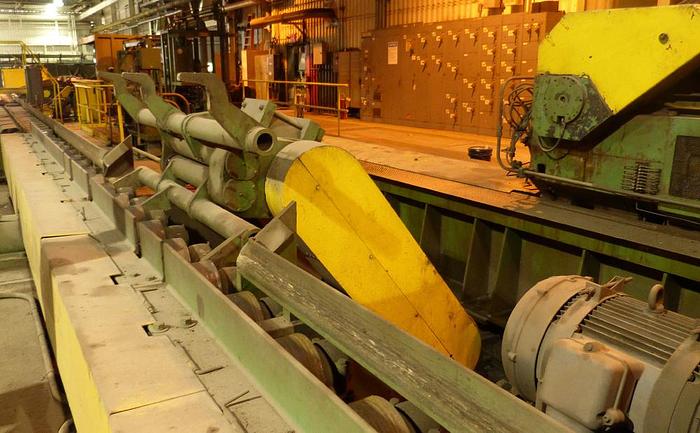

  (2) Manipulators

  (2) Manipulator beds

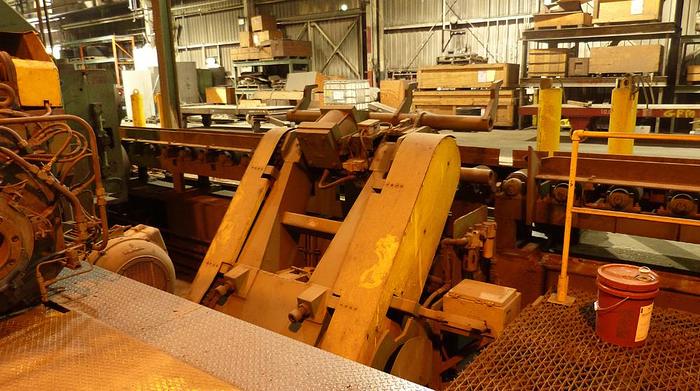

  (1) Billet Charging system

    (places billet into work area to be gripped by manipulators)

  (1) Discharging system

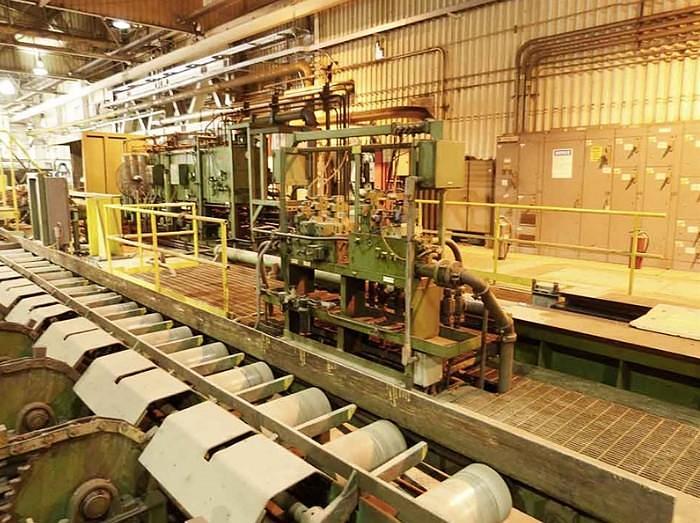

  (1) Inlet roller conveyor system

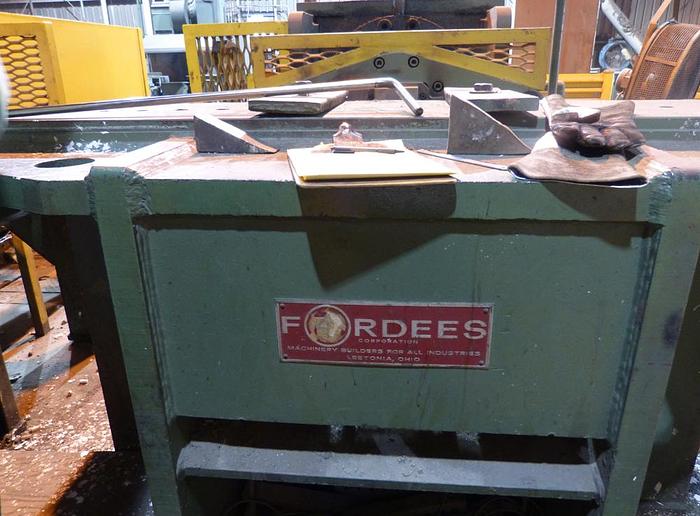

  (1) Fordees 350 ton Inline Bar Straightening Press

  (1) Outlet roller conveyor system

• GFM Die Changer

• Hydraulic System

• Lubrication system

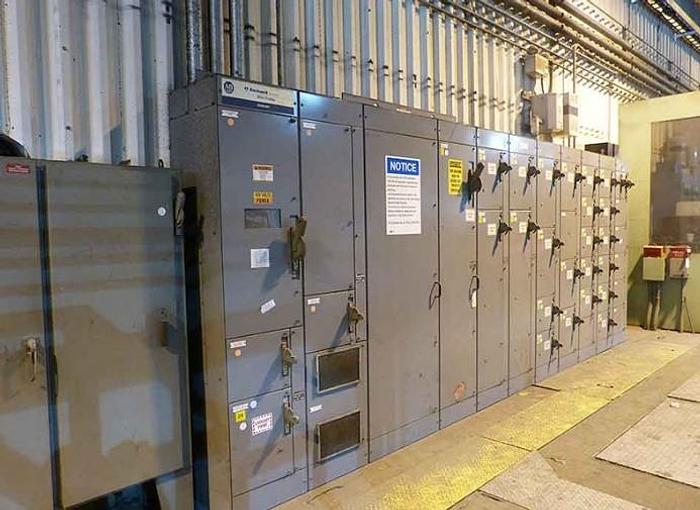

• Electrical system including all drive motors and electrical cabinets (480V / 3 / 60Hz)

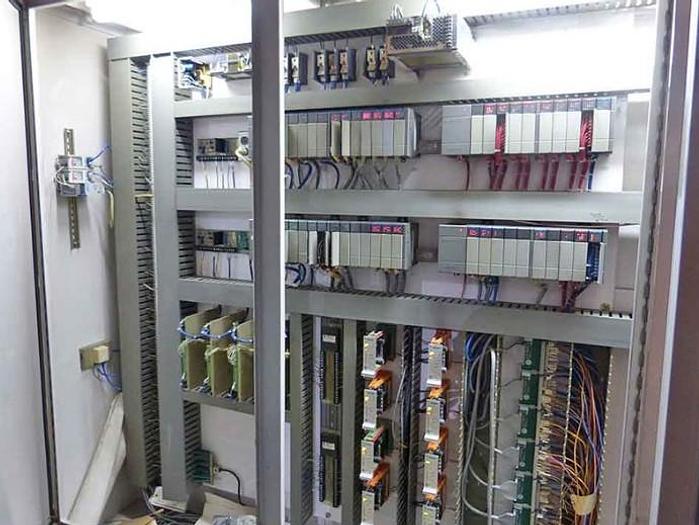

• Electronic Control System designed, upgraded, built & installed in 1998

• Operator’s Control Room w/Special Control Console

   (Rockwell Automation w/Allen Bradley System)

• Independent Tool Adjustment

• Centering guides

• Block Supports

• Component Change Equipment

• Comprehensive Documentation

This Forging Line was fully rebuilt and upgraded to CNC Controls in 1998.
