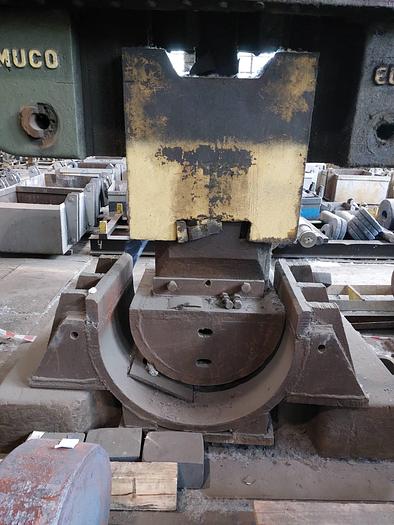

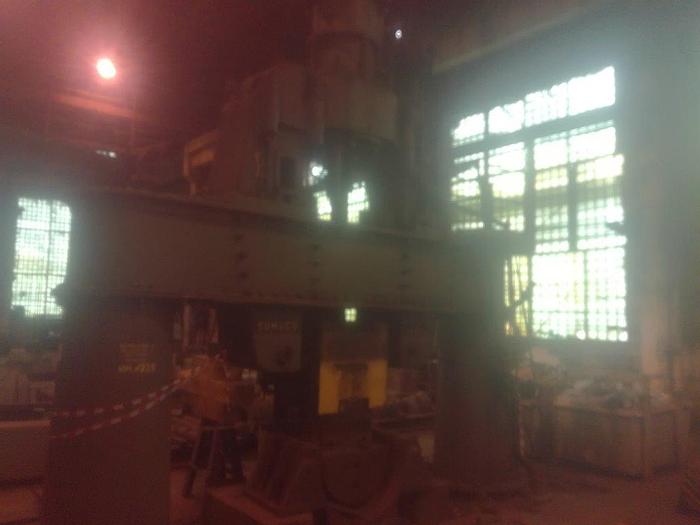

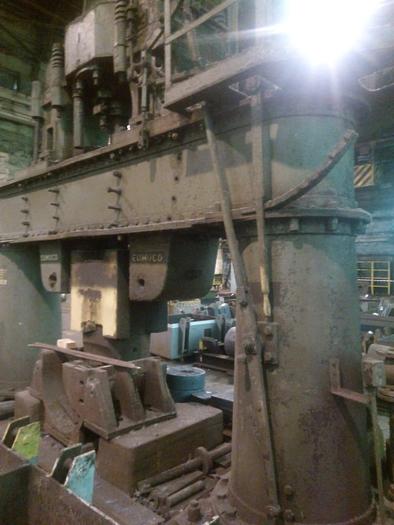

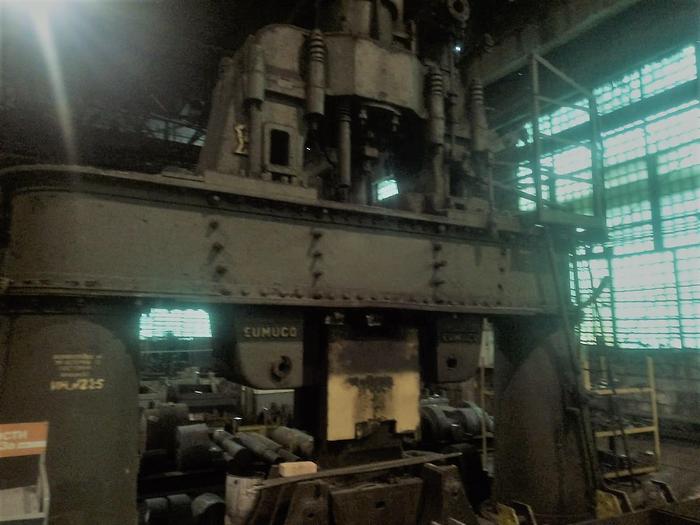

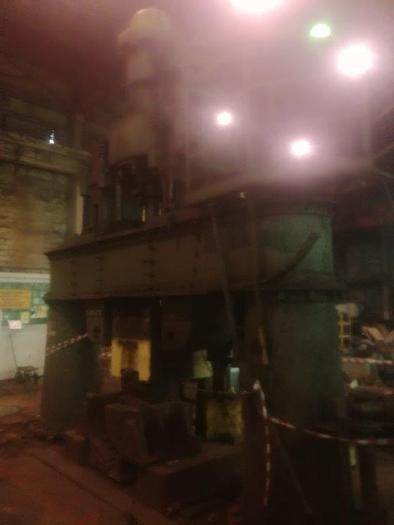

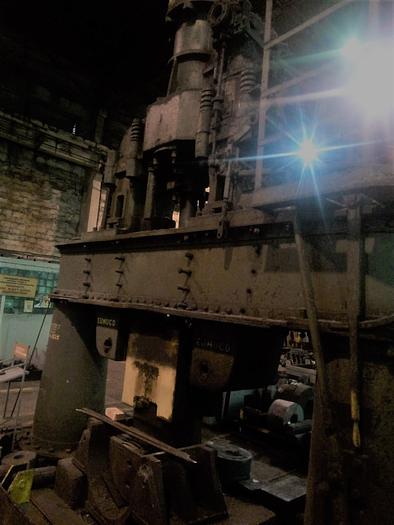

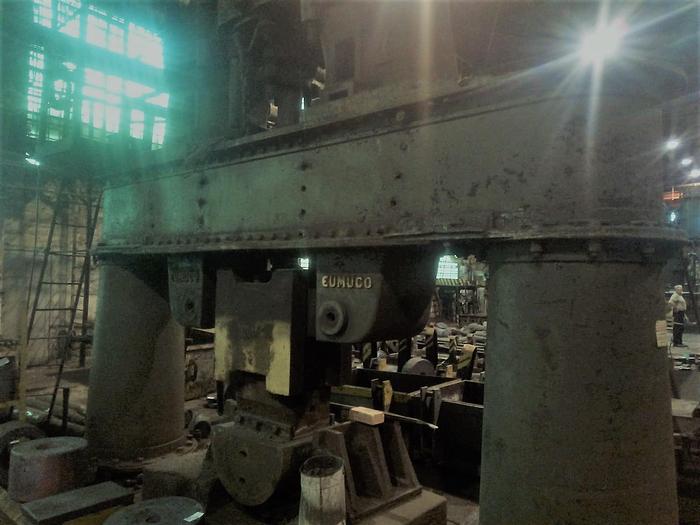

Hammer Forging Open Die Pneumatic Eumuco

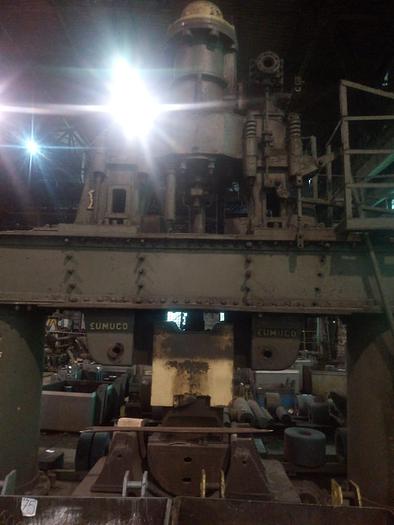

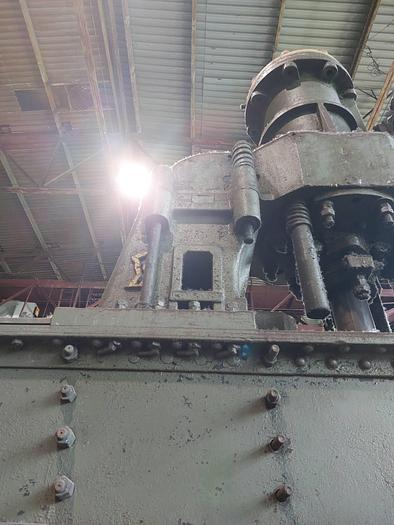

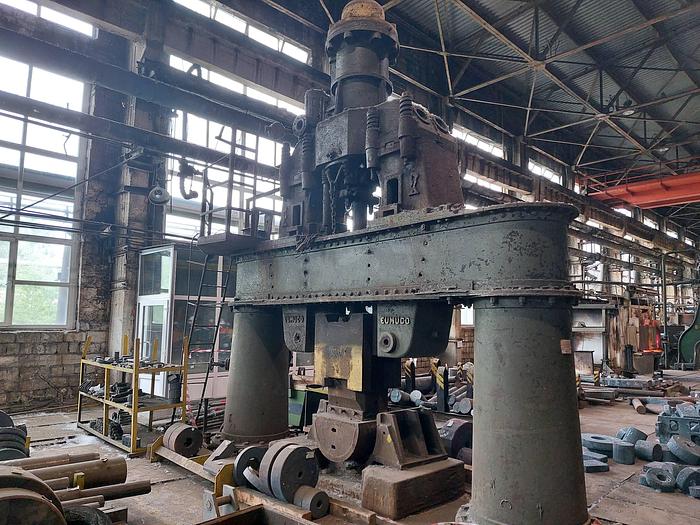

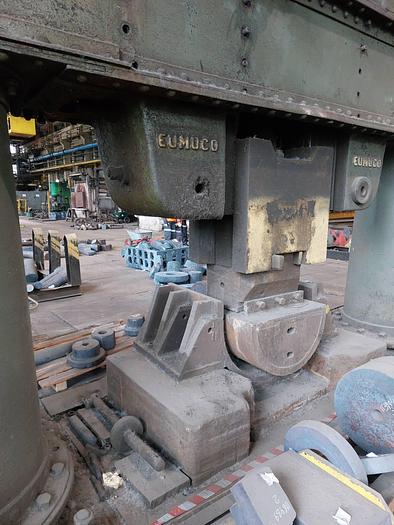

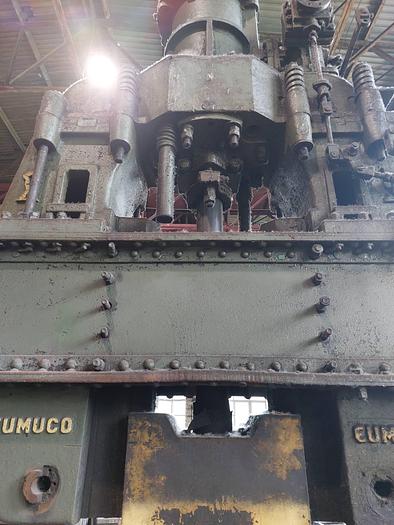

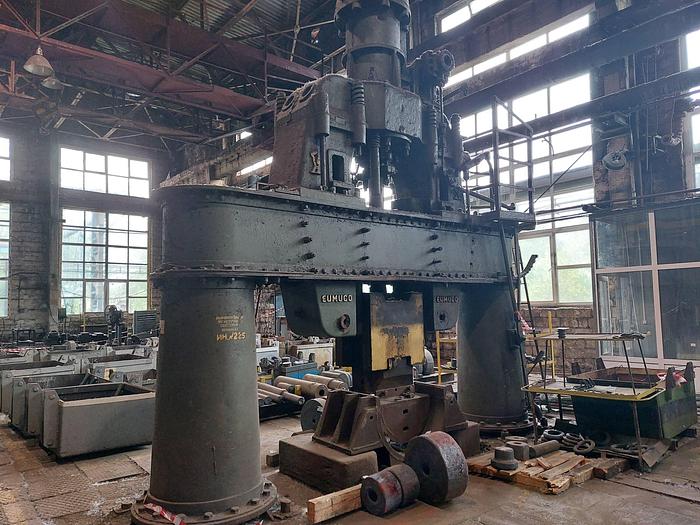

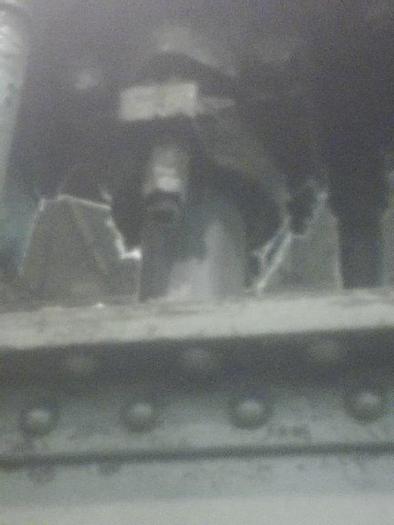

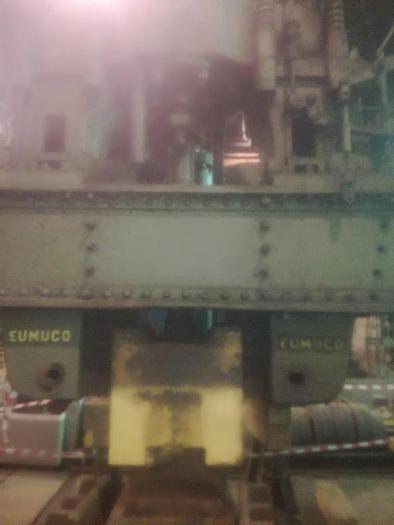

Double-acting steam-air forging hammer of arched type for open-ended forging EUMUCO

Capacity : 3.15 ton,

Impact energy : 80 kJ,

Falling part weight : 3150 kg,

Number of strokes per minute : 56,

Distance between posts : 2800 mm,

Working area height : 630 mm,

Striker mirror size : 600x340 mm,

Steam temperature maximum : 200 С,

Maximum forging weight : 820 kg,

Hammer weight : 72700 kg,

Shabot weight : 47200 kg,

Width : 5000 mm,

Depth : 2490 mm,

Height above floor level : 5500 mm.
