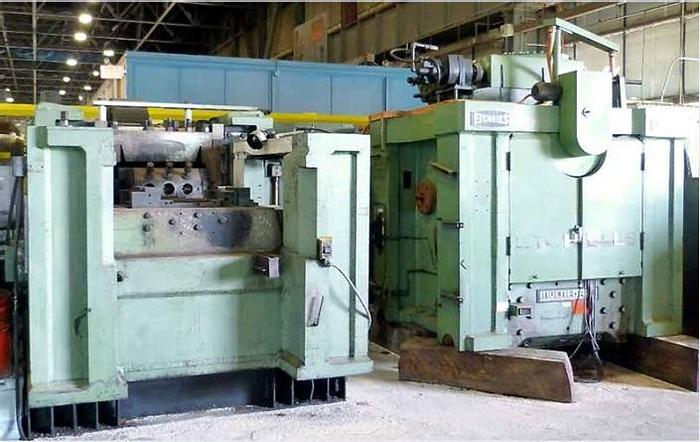

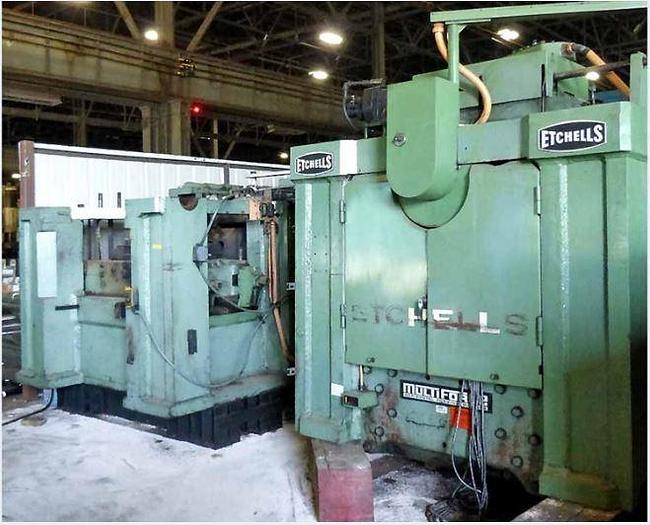

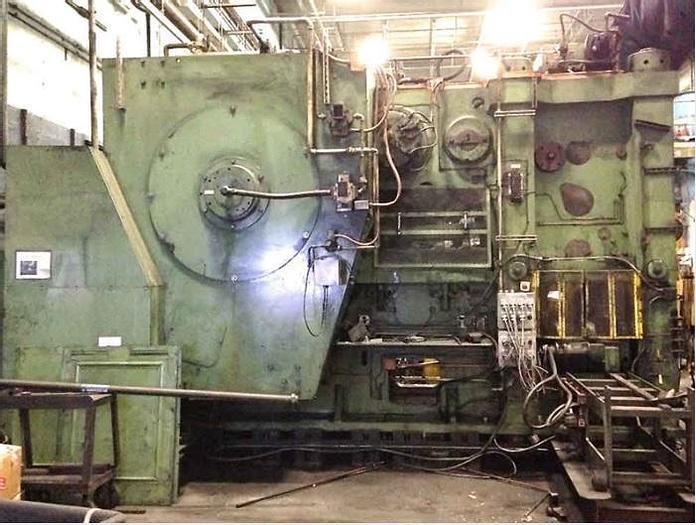

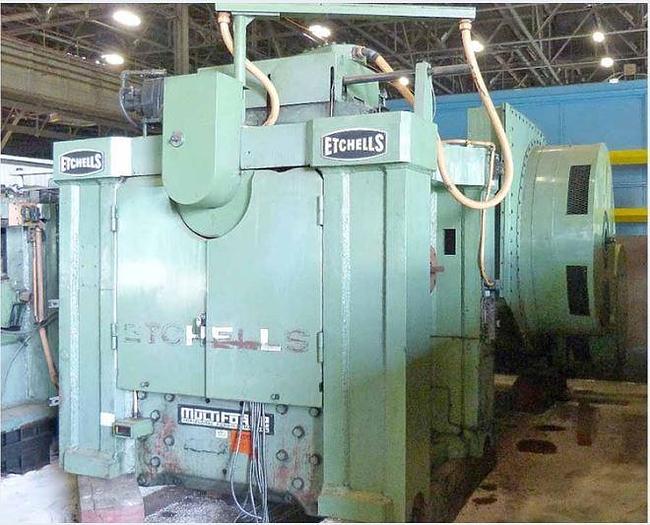

Upsetter MF40/1000

Vertical Grip Upsetter :

Capacity : 1000 tons,

Stroke : 203 mm,

Dia : 152 mm,

Grip Open : 152 mm,

SPM : 30 - 60

Grip Tons : 1000 tons,

Thickness of each die : 203 mm,

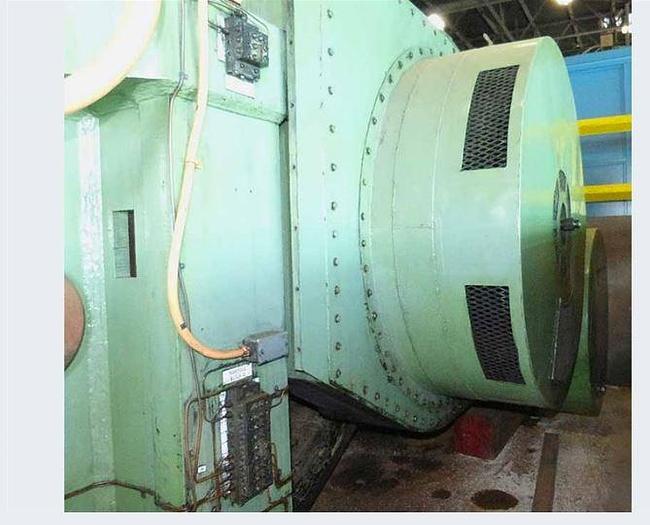

Main motor power : 75 kW,

Machine length : 5791 mm,

Machine width : 3962 mm,

Machine height : 4039 mm,

Net weight : 110 tons.

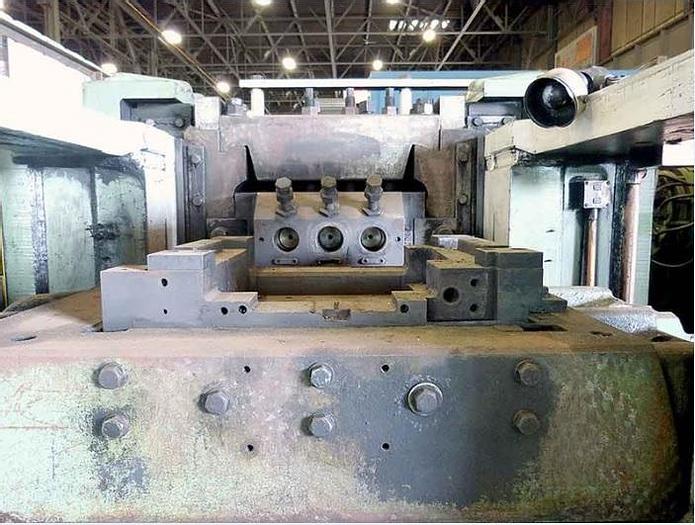

Gripping tool area dims:

width : 762 mm,

depth upper : 560 mm,

depth lower : 560 mm,

upper die thickness : 200 mm,

lower die thickness : 200 mm.

Tie-Rod design & top/bottom die heaters.

Complete with:

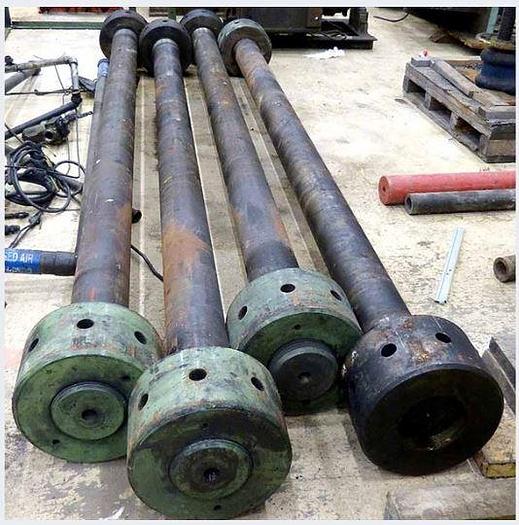

* Four (4) Tie-Rod Construction

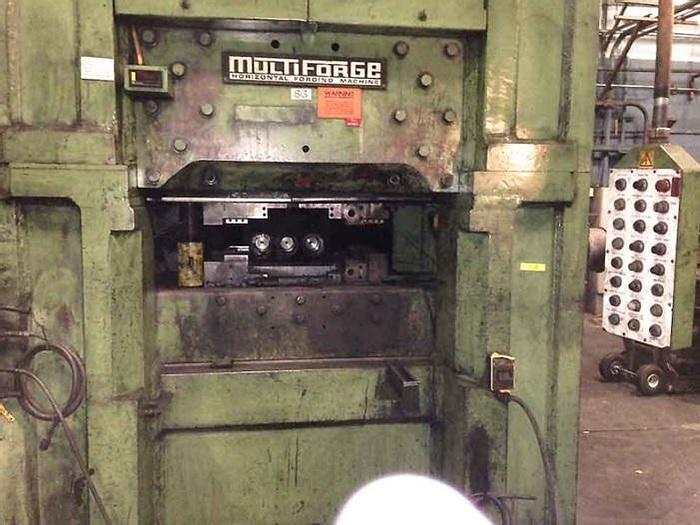

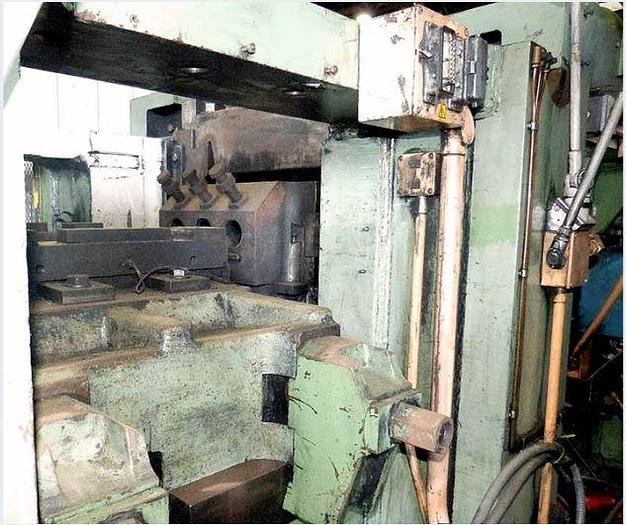

* Horizontally opposed griping dies

* Multi-Directional adjustment by wedges

* Flat-Base Construction

* Overload protection

* Adjustable front stock gauging device

* Easy tooling adjustment & die changing

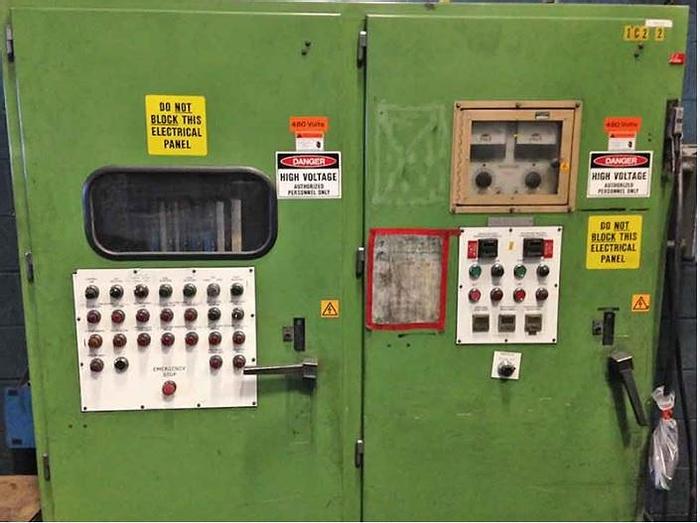

* Operator’s Push-Button Controls + Pendant style controls

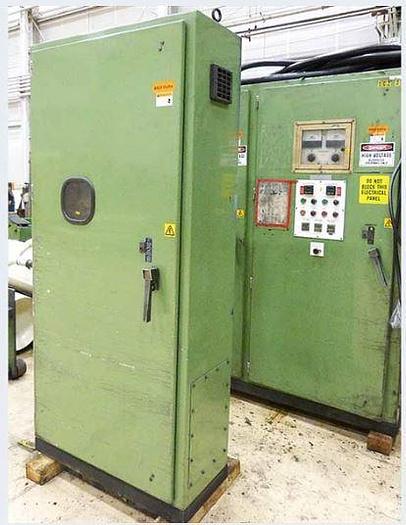

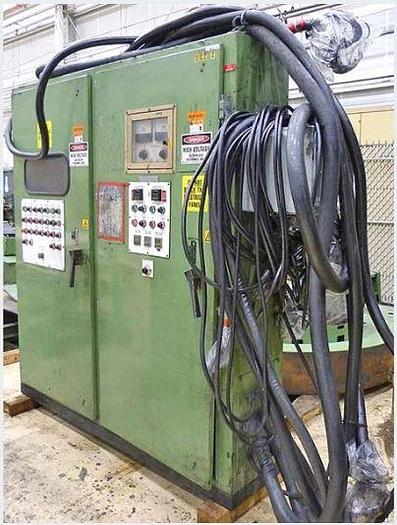

* Complete electrical & electronic systems w/480V /3/ 60 electric service

* Variable Speed Inverter

* Top & Bottom Die Heaters

* Air Clutch & Brake System

* Lubrication system

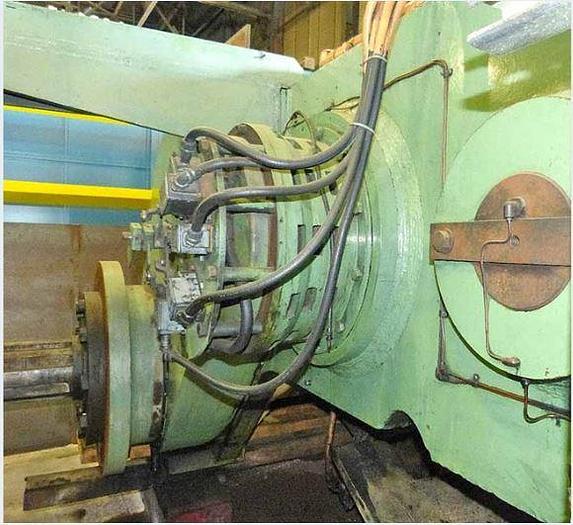

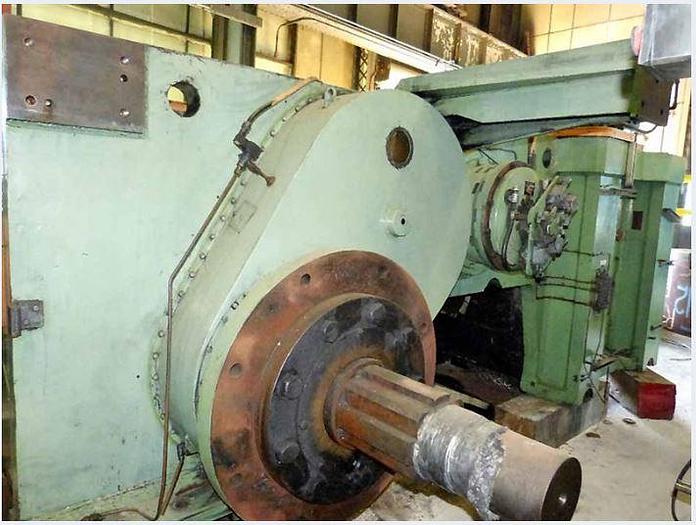

* Wichita flywheel shaft clutch #ATD 248

* Wichita flywheel shaft brake #ATD 236 L.I.

* Wichita camshaft clutch #ATD 336

* Wichita camshaft brake #ATD 218

* Grip Slide Wedge Locking System with lock/unlock motor

* Flywheel brake air cylinder 6” dia x 3” stroke

* Bolster removal motor

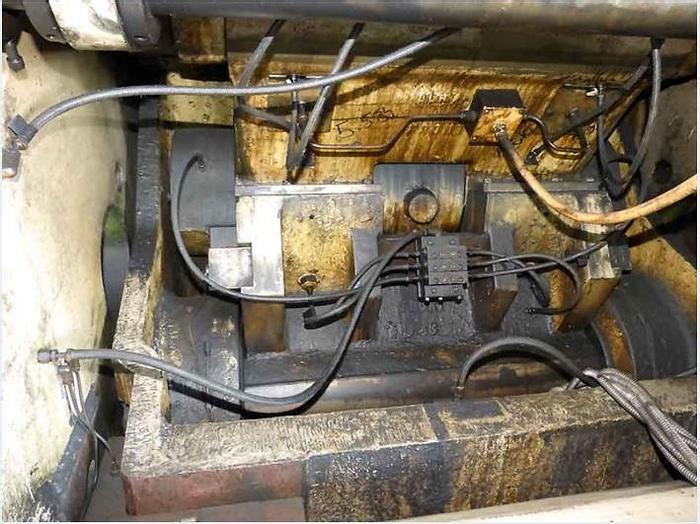

* Trabon lubrication system

* Electronic built-in Alarm system
