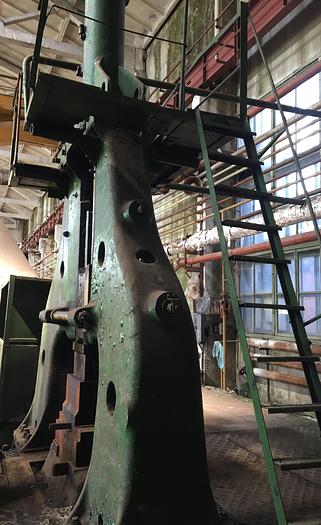

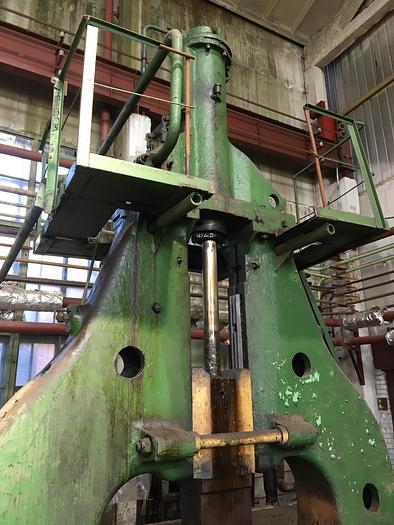

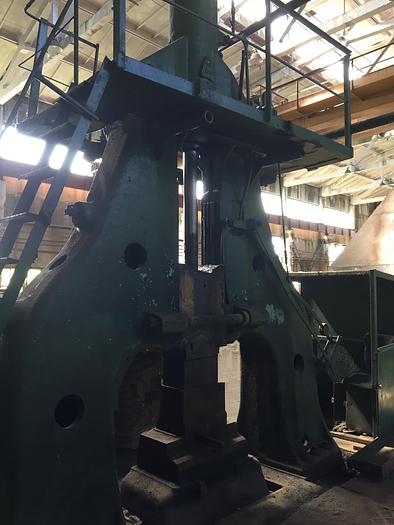

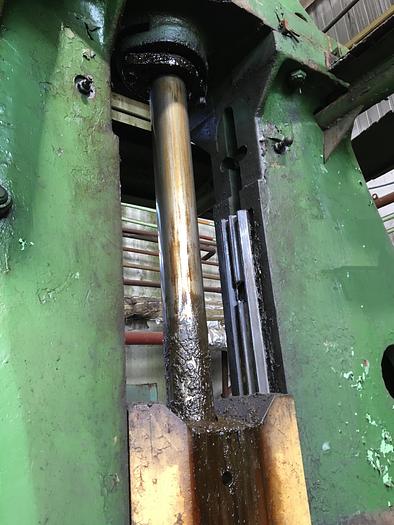

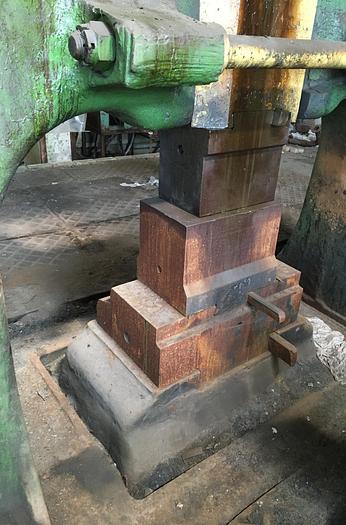

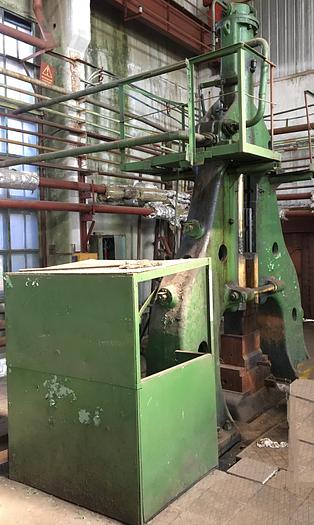

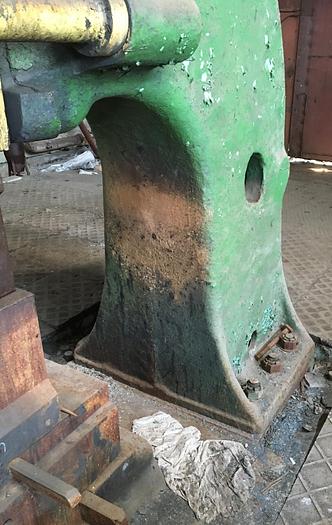

Hammer Drop Forging Open Die M1340

Capacity : 1 ton,

Impact energy : 25 kJ,

Max number of blows per min : 63,

Distance clear between columns : 1800 mm,

Working zone daylight : 450 mm,

Bottom die impression to floor distance : 750 mm,

Die impression size : 410 x 230 mm,

Steam pressure : 0.7 - 0.9 MPA,

Compressed air pressure : 0.6 - 0.8 MPA,

Overall dimensions : 3910 x 1400 x 5145 mm,

Mass : 13 tons,

Mass of anvil block : 15 tons.
