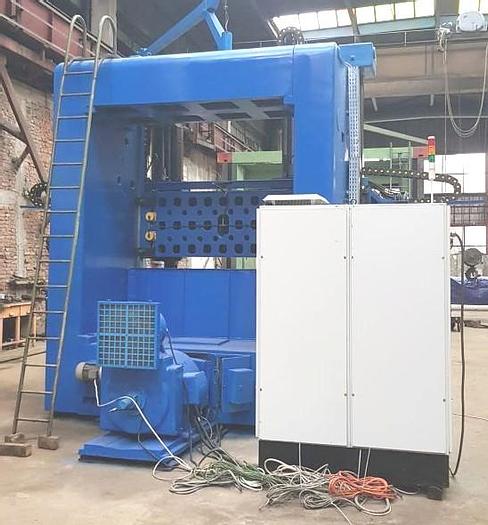

Lathe Vertical Turning CNC SC27
Sold
Specifications
| Manufacturer | Abe Seiki,Japan |
| Model | SC27 |
| Year | 1986 |
| Condition | Used |
| Stock Number | MA1267 |
| Item condition | Good working, under power |
| Capacity tons | 2650 |
Description
Max. Turning dia.: 2650 mm,
Table diameter: 2500 mm,
Max. Table load: 15000 kg,
Max. Admitted workpiece height: 1900 mm,
Main motor power: 60 kw,
Table speed range: 1-112 rpm,
Left-hand head travel: 1200 mm,
Right-hand head travel: 760 mm,
Cross rail vertical travel: 1600 mm,
Total machine weight: 40000 kg,
CNC siemens 828d on 4 axis. (the machine has 2 vertical supports in cnc),
1986 retrofitted in 2015.
Technical manuals available.
