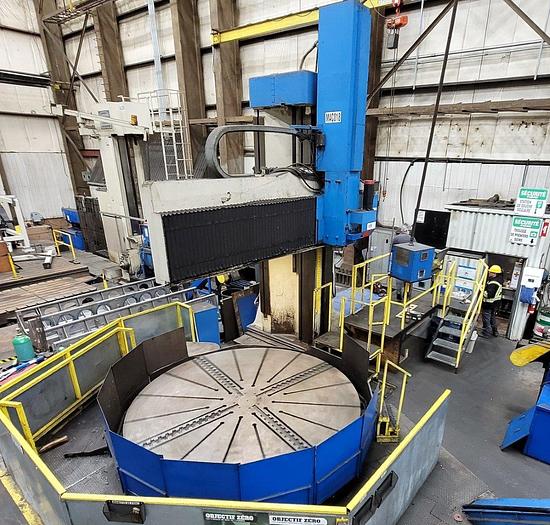

Lathe Vertical Turning CNC O-M Ltd TMSI-36/70

Price

Contact us for price

orCall +919920651051

Specifications

ManufacturerO-M Ltd
ModelTMSI-36/70
Year1994
ConditionUsed
Stock NumberMA2023
Item conditionExcellent condition
Capacity tons0

Description

Table dia : 3600 mm,

Turning dia : 7000 mm,

Turning height : 2900 mm,

Max. height under rail : 3000 mm,

Table weight capacity : 45.4 tons,

Vertical ram travel Z-Axis : 1500 mm,

Horizontal travel of ram X-Axis : 2550 mm,

Table Speeds range : .55-40 RPM,

Table speeds : 16 Steps,

Feed range vertical ram head : 0.003-.6 IPR,

Rapid traverse, Horizontal head : 49 IPM,

Rapid traverse, Cross rail : 12 IPM

Rapid traverse, Column : 21 IPM

Maximum torque : 58,000 LB/FT

Main motor : 37 Kw,

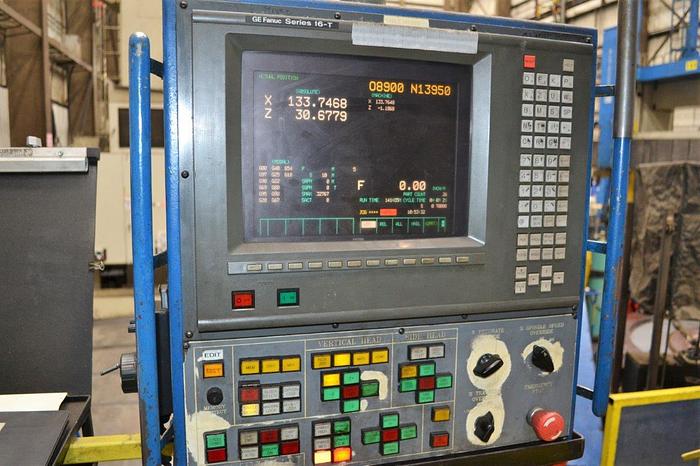

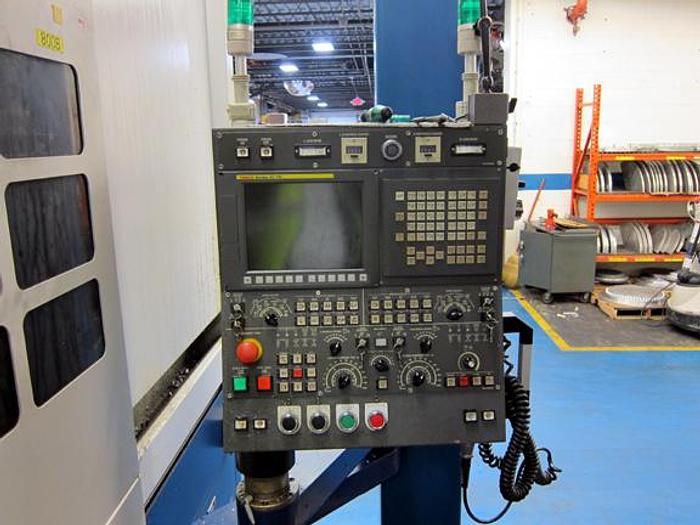

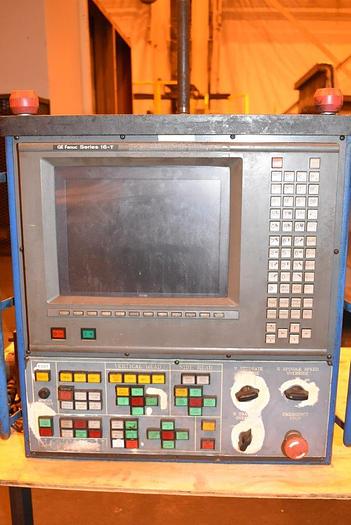

CNC brand: Fanuc

CNC model: 16T-A CNC CONTROLS (RETROFIT 1994)

Machine Footprint : 10414 X 6706 mm,

Machine height : 7772 mm,

Machine Weight : 72.5 tons.


Equipped with :

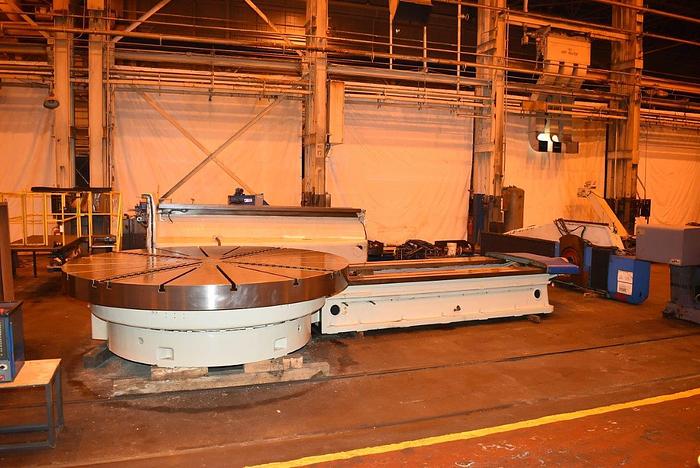

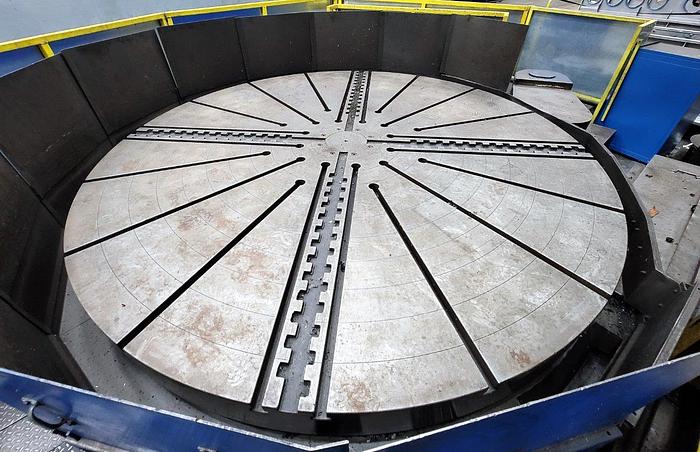

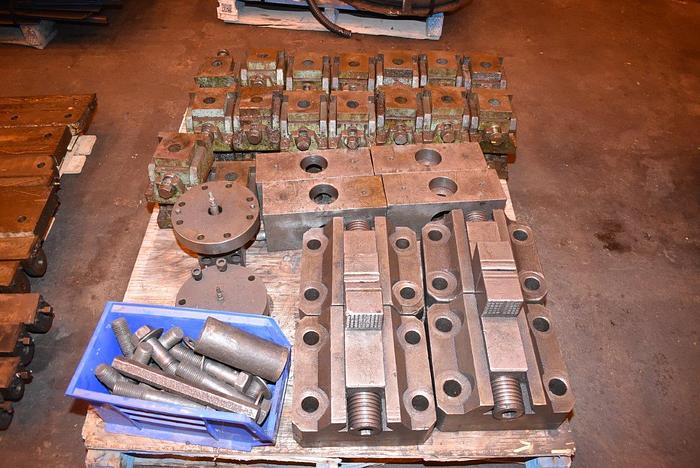

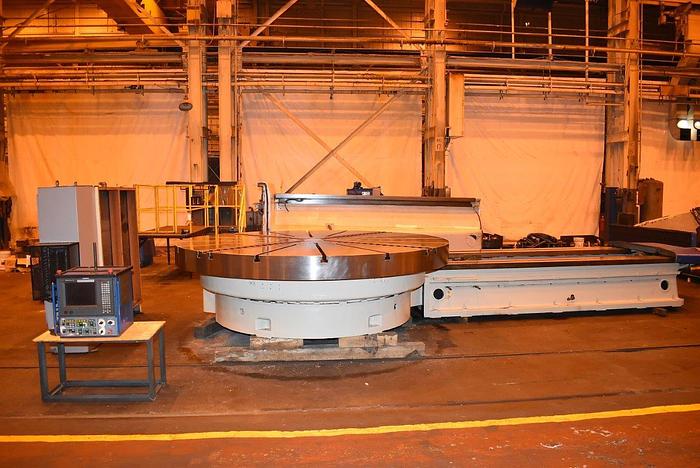

4000 mm T-Slotted Table with 4-TOP JAWS

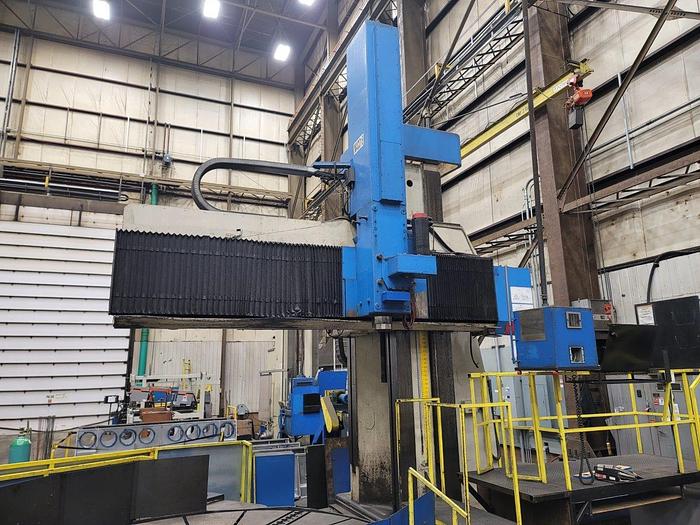

Openside adjustable column

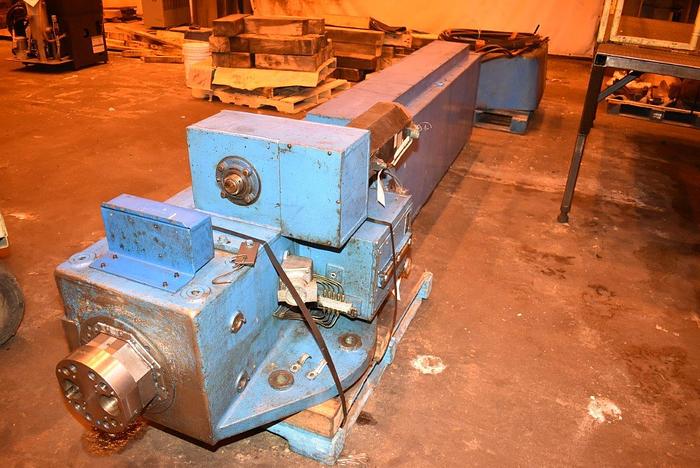

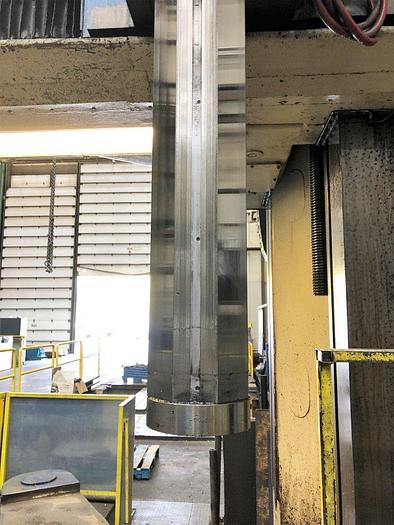

Vertical octagonal ram on cross rail

Coolant

Chip Guards

Mayfran chip conveyor


Note :

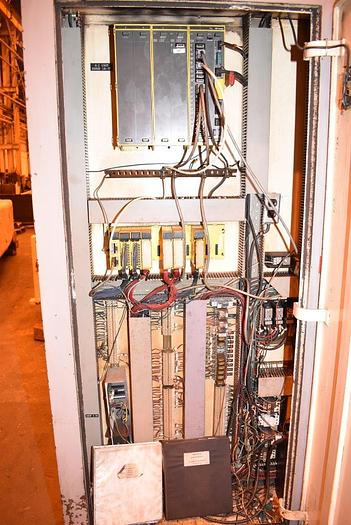

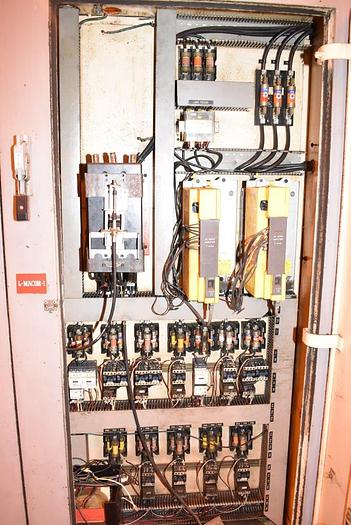

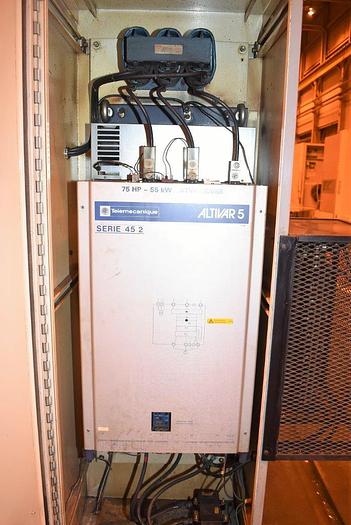

Ball Screws & Fanuc red cap drives.

Documentation available.
